promises more speed, more clearance, more capability
A FURTHER EVOLUTION OF THE ONE-BIKE SOLUTION
Four years ago, 3T ventured out into unknown territory with its original Exploro. Borrowing the dropped chainstay concept of the Open UP that was introduced just a year earlier (3T co-owner and frame designer Gerard Vroomen wears the same hats at Open), the ultra-progressive Exploro was able to mate an usually short 415 mm rear end for more nimble handling together with room for tires up to 700×40 mm or 650×54 mm. And yet despite all that capability, the curious tube shaping supposedly made the Exploro more efficient aerodynamically than it otherwise would have been, to the benefit of riders still interested in going faster, regardless of surface type.
As you’d expect, then, the new Exploro RaceMax further expands on that initial philosophy with a more refined frame shape that not only accepts even-bigger rubber, but is also said to be more aero as well — just as you’d expect for a new top-end model.
The new Exploro RaceMax should now easily accommodate 700×42 mm-wide tires, while 650b users should be able to cram in tires with a total measured width of 61 mm — both with the same 415 mm chainstay length as before. That said, both of those figures are estimates and, as always, will vary depending on variety of factors, including tire make and model, rim internal width and tire bed shape, tread pattern, and even inflation pressure – more on this in a bit.
On the aero front, 3T hasn’t provided much in the way of specifics, but Vroomen says the Exploro RaceMax’s bulbous frame has been upsized to make for a smoother transition between the bigger front tire and the rest of the frame. The down tube, for example measures a healthy 46 mm across behind the head tube, but steps up to a gargantuan 75 mm about a third of the way down. Not at all coincidentally, that width is also specifically designed to help direct air around the water bottles that will invariably be mounted to the down tube (and, likely, the seat tube as well).
The new fork also features a road bike-like 370 mm axle-to-crown length and a very low-profile crown in general. As a result, the front wheel sits rather close to the down tube — again, something that supposedly helps in terms of drag — and there’s also a pronounced cutout in the backside of the seat tube to shield the rear wheel. Otherwise, the frame clearly embraces the truncated airfoil concept, with the head tube, down tube, seat tube, and seatstays all sporting some variant of the idea.
Other features include dual dropped chainstays — only the driveside chainstay is dropped on the current Exploro — a BB386EVO press-fit bottom bracket shell (with thread-together cups), compatibility with 1x or 2x drivetrains, mounts for three water bottles and a top tube feed bag, hidden front and rear fender mounts, adapter-free flat-mount disc-brake mounts for 160 mm-diameter rotors, and adaptable internal cable routing that can accommodate a wide variety of mechanical and electronic drivetrains.
3T even plans to unveil a suite of custom accessories for the Exploro RaceMax, such as a dedicated front and rear fender set, special bottle cages and bags, and even a pump.
A few annoyances on the first-generation Exploro have been addressed, too.
First and foremost, the cumbersome splined seatpost head has been ditched in favor of Ritchey’s one-bolt head design, which is far, far easier to adjust and install (and yes, it’s backward-compatible if you’re a current Exploro owner looking for some relief). And whereas the rear derailleur hanger on the current Exploro basically just falls off the bike when the thru-axle is removed, the new Exploro RaceMax uses a more conventional design.
TWEAKED GEOMETRY, SIMILARLY LIGHT
Where the current Exploro is only offered in four sizes, the Exploro RaceMax will be available in six. One of the additional sizes basically allows for finer gradations in between the current largest and smallest Exploro frames, so prospective buyers should be less likely to find themselves in between sizes. However, the other new size slots in at the very small end of the spectrum, meaning the Exploro RaceMax can supposedly now fit riders as short as 1.42 m (4’ 8″).
Reach is largely unchanged for the most part, but stack has gone up a bit for a less aggressive position than the regular Exploro. For example, a medium Exploro sports a reach of 378 mm and a 546 mm stack. On a 54 cm Exploro RaceMax, though, the reach is virtually identical at 377 mm, but the stack goes up to 564 mm.
Bottom bracket drop has also increased by several millimeters for more stability, ranging from 75 to 79 mm, depending on size. However, steering geometry has actually gotten a bit quicker. On that same medium Exploro, the trail figure is a middle-of-the-road 67 mm when used with a 700×35 mm tire. But on the 54 cm Exploro RaceMax, the trail is a nimbler 63 mm.
Weight-wise, it’s mostly a wash.
According to Vroomen, painted frame weights on the new Exploro RaceMax range from 1,050 to 1,150 grams, depending on size — virtually identical to the current Exploro Team. The higher-end Exploro LTD shaves another 100 g off of that, but it also costs significantly more, which suggests that 3T is leaving the door open for a higher-end Exploro RaceMax model later.
A NEW WAY OF MEASURING TIRES
When you dig into the press materials 3T provides with the Exploro RaceMax debut, one key piece of information is conspicuously absent: explicit call-outs for how big a 700c or 650b tire will fit in the new frameset (which is why the figures I supplied earlier are only estimates).
“Which brand? Which model? Which rim?” replied Vroomen when I inquired about this. “That’s the whole point. This question is unanswerable. Always has been.”
As a result, 3T is proposing a new method for measuring tires that includes two metrics, WAM (Width as Measured) and RAM (Radius as Measured), both of which have the associated rim internal width as a suffix. As the names suggest, they refer to actual measurements of the tire on a specified internal rim width in order to provide more reliable tire size information.
For example, a Schwalbe G-One Allround with a printed width of 35 mm only actually measures 35 mm when mounted to a rim with a 19 mm internal width — hence, the WAM19 dimension would be 35 mm. However, that same tire mounted on a rim with a 29 mm internal width has a substantially broader footprint, and a WAM29 dimension of 39
Likewise, a tire’s actual radius will vary with rim width, too. That same Schwalbe tire on a 19 mm-wide rim has a measured radius of 351 mm (hence, RAM19 = 351 mm). But on a 29 mm-wide rim? The RAM29 decreases to 348 mm.
WAM and RAM provide consumers with far more reliable tire sizing information than anything currently available, and combined, they have the potential to transform the way tire sizes are described, much in the way stack and reach are now used to define how a frame fits. Coincidentally, Cervelo (back when Vroomen and Phil White were running that show) was the first major brand to embrace stack and reach, so it’ll be interesting to see where WAM and RAM go from here.
Either way, I have a lot of thoughts on this subject that I’ll discuss in more detail in the near future, but let’s just say I’m absolutely a big proponent of the concept. More accurate and informative tire size information is something I’ve been actively pushing the industry to adopt since at least 2013, and I hope the WAM and RAM concept is embraced more widely moving forward.
NEW WHEELS AND HANDLEBARS, TOO
To suit the new Exploro RaceMax’s do-everything attitude, 3T is also debuting a new set of ultra-wide 700c carbon wheels.
The new Discus 45 | 40 LTD tubeless carbon clinchers boast an exceptionally generous 29 mm internal width to better support the wider tires that are increasingly popular with gravel riders. In keeping with the Exploro RaceMax’s aero mission, the external width is a similarly spacious 40 mm while the depth is a mid-deep 45 mm, all of which should make for a nicely cohesive total package relative to narrower rims that would result in more of a “light bulb” profile.
3T is lacing those new rims to your choice of Chris King, Industry Nine, or Carbon-Ti hubs, and claimed weight for the set is 1,665 grams (with the Carbon-Ti hubs). Retail price is US$2,400 / €2,400 with the Industry Nine or Carbon-Ti hubs, or US$2,700 / €2,700 with the Chris King ones. 3T expects to have these available some time in June.
Also in the mix are four new carbon fiber drop handlebars.

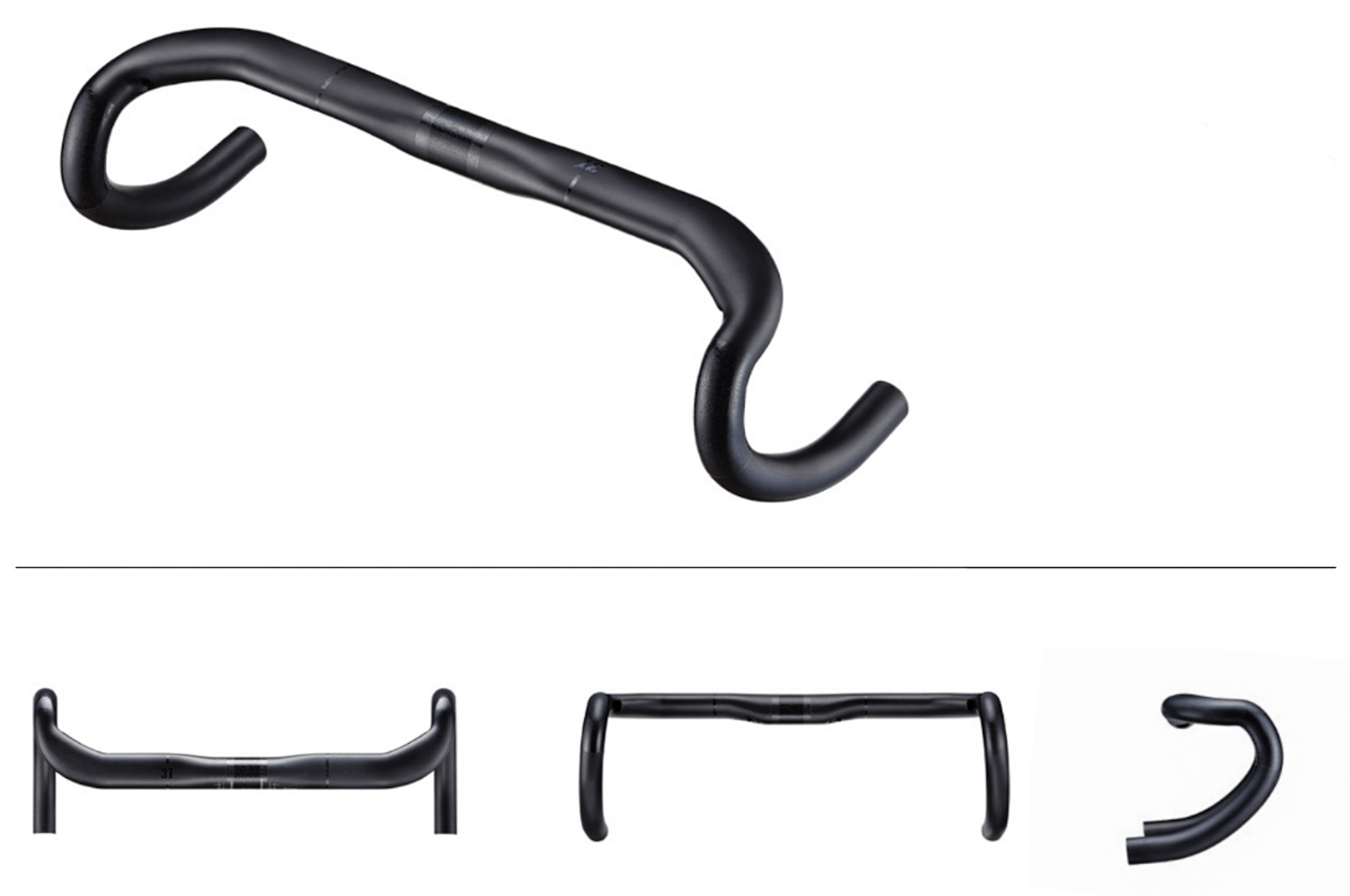

The Superergo LTD sports flattened tops and a multi-shape ergonomic drop shape that prioritizes comfort, while the Superghiaia LTD features the same tops, but with 3T’s distinctively flared drops to provide more control in off-road situations.
The Aeroflux LTD is a more traditional aero-minded road bar with a more aggressively flattened top section and non-flared ergonomic-bend drops. Finally, for aero-minded gravel riders — heads up, prospective Exploro RaceMax buyers — there’s the new Aeroghiaia LTD, which combines the Aeroflux LTD’s aero tops with the Superghiaia LTD’s funky flared drops.
All of the new bars have a retail price of US$350 / €350. UK and Australian pricing is to be confirmed.
EXPLORO RACEMAX MODELS, PRICING, AND AVAILABILITY
Given the huge range of compatible wheel and tire sizes that works with the new Exploro RaceMax, 3T is also offering a rather diverge range of build kits to suit, including 1x and 2x drivetrains as well as 650b and 700c wheel-and-tire configurations with both aluminum and carbon fiber wheel options.
Complete builds with 700c setups that are aimed more at higher speeds on more traditional road surfaces are tagged with a “Race” designation, while complete bikes with 650b rolling stock designed for more off-road routes will wear the “Max” moniker.
Retail price for the frameset is set at US$3,200 / €3,200, and complete builds start at US$4,200 / €4,200. Frames and complete builds should be at some dealers now, with more widespread availability in the coming weeks. Australian and UK prices are still to be confirmed.
The existing Exploro frameset will remain in the lineup unchanged, aside from updated build kits and new color options, and will essentially comprise 3T’s “entry-level” and mid-range models.
I’ve got one of the first medium-size production Exploro RaceMax models in for test now, outfitted for one-bike duty with two wheelsets. In 700c mode, it’s equipped with a SRAM Force eTap AXS 1×12 drivetrain and deep-section 3T Discus 45 carbon clincher wheels wrapped with 35 mm-wide Pirelli Cinturato tires; in 650b mode, it’s equipped with a SRAM Force/XO1 AXS “mullet” 1×12 drivetrain with a mountain bike cassette and rear derailleur, 3T Discus Plus carbon wheels, and 54 mm-wide Vittoria Barzo knobbies.
Actual weight in the burlier 650b trim is 8.82 kg (19.44 lb) without pedals or accessories, while the 700c setup is nearly a full kilo lighter at 8.1 kg (17.86 lb) — and I can’t wait to ride it.
Stay tuned.
